Spreading is the process during which textile is cutting into pieces of a specific length which are and then placed on pinnacle of each other to grade several plies. The length of a ply is determined by the shape, size and the number of the components which are to be cutting from it. The number of plies in a spread depends on the issue of articles ordered in addition to the technological and technical limitations of the textile spreading as well as cutting processes. The design in addition to properties of the material determine the spreading way, that is the style inward which plies inward a spread should be placed. Fabric spreading may live carried out either manually or by automation. Manual spreading is traditional in addition to has been used since the mass production of garments first began. The automated spreading procedure has come into wide exercise during the concluding few decades.
Manual Spreading Process:
The manual spreading process is suitable for modest scale product. Manual spreading may be used for all variety of fabrics, including those amongst complex structures and intricate patterns. In big scale production, manual cutting is frequently used for working amongst intricately patterned fabrics. The price of technical equipment is low compared amongst automated spreading, simply the productivity is miserable.

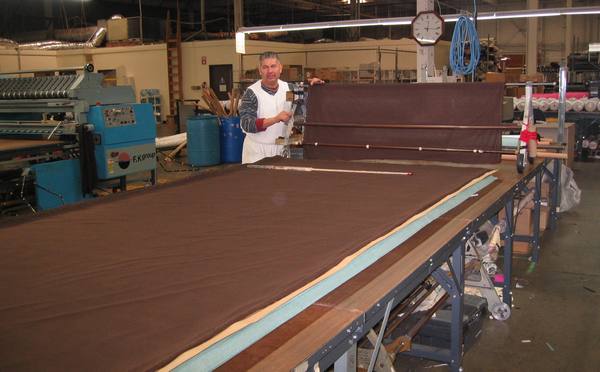

|Fig-ane: Manual spreading procedure |
During manual spreading ii workers move the cloth plies over the spreading table, ensuring the correct placement of each ply. As they make and so, they look for faults in the fabric and brand the conclusion to exit them or cut them out. They besides count the plies required as well as cut the material at the end of the spread. If the fabric has an intricate design, they ensure the blueprint matches inwards all the textile plies inward the spread.
Spreading speed too character is subject on the properties of a cloth and the skills and experience of the workers. There is no ask for special equipment in manual spreading. All kinds of fabric may be set only the procedure is both highly skilled as well as fourth dimension consuming. Manual spreading is used inward small enterprises or where, inwards the case of larger enterprises, at that place is a involve to spread fabrics with unlike kinds of intricate patterns.
Characteristics of the manual spreading procedure:
The spreading process is carried out on a spreading tabular array alongside a smoothen surface (come across Fig-two). The cloth feeder may live fixed on the table, on a wall (at the end of the spreading tabular array) or may live gratuitous-standing adjacent to the spreading table. If a pose end cutter is used to cutting the set fabric plies, it is fixed on the spreading table side by side to the material feeder (come across Fig-3). The fabric scroll is fixed on a feeder axis earlier the spreading process is started. According to the spreading mode to live performed, the material roll is fixed with its face up side upward or down. The manual spreading procedure is performed inwards sequential steps.

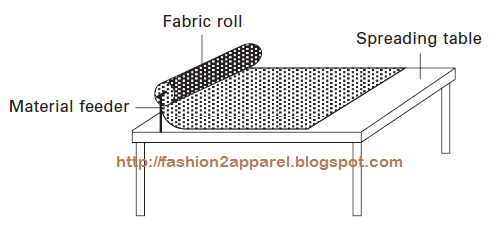

|Fig-two: Spreading tabular array alongside a fixed elementary cloth feeder|
|Fig-3: Spreading table equipped with a place end cutter |
- Marking the spread information;
- Spreading the material plies;
- Fixing a mark on acme of the spread.
Marking of the spread information:
The mark, which is printed on paper, is placed on the spreading table. It is fixed in the required position in addition to the following spread data are marked on the both sides of the table: the first as well as stop of a spread, splice marks (places inwards the spread where the fabric may live cutting in addition to set double to bargain with flaws without damaging the cut components) too size alter places (marks used inwards performing footstep spreads).
At the beginning of the spreading procedure, an underlay paper ply is set on the tabular array to ensure easy transfer of the spread along the tabular array during the cutting procedure. The fabric spreading procedure is carried out past ane/two workers at each side of the spreading table who act the material ply to the first of a spread. The cease of the textile ply is placed exactly at the offset of the spread too secured. Returning to the initial place (the home where the fabric gyre is fixed) 1 worker aligns the laid downwards textile ply alongside the border of the tabular array and the previously spread fabric plies amongst a permitted variant of +/-0.five cm. The moment worker smoothes the surface of the ply, ensures an fifty-fifty tension inwards the material too prevents creases or folds appearing during the spreading process. The spreading procedure is repeated until the desired issue of material plies are set downwards.
The optimal length of a manually performed spread is iv-vii m. Short markers may live joined in addition to set equally 1 spread, forming either a traditional or a footstep spread. The number of material plies inward a spread depends on the size of the guild, the fabric properties (thickness, slickness, friction between the cloth as well as a cutting device, etc.) too the technical limits of the manual cut machines (the stroke size, cast of the blade, etc.). Narrow tubular fabrics in addition to interlinings are spreaded by a unmarried worker.
The fixing of a marking on the summit of a spread:
Influenza A virus subtype H5N1 mark printed on a paper is placed on the peak of a prepared spread. Clamps are placed about the edges of the spread to concur it in position. If the marking is printed on the newspaper alongside gum on its reverse side, it is lightly fixed to the height ply of the spread past using a special large base of operations Fe.
Disadvantages of the manual spreading process:
The spreading speed too character is largely dependent on the skills together with experience of the workers performing the procedure. Spreading operators have a heavy load during the working 24-hour interval and fatigue may influence both spreading speed in addition to lineament. Two operators are involved in manual spreading process whereas the automated procedure requires exclusively 1.
Equipment for manual spreading:
The equipment used inwards the manual spreading procedure is elementary in addition to comparatively inexpensive. The principal factor is a spreading table. Special position finish cutters may live used to increase the productivity of the process. Several other minor auxiliary instruments, such every bit large base of operations irons, pins together with clamps may be used in the procedure.
Automated Spreading Process:
Manual spreading is fourth dimension together with labour intensive. With the evolution of volume product, the manual spreading procedure could no longer furnish the necessary productivity in addition to the need arose for specialised machines which were capable of carrying out spreading at a much higher speed. The outset spreading machines carried a scroll of material over the table too performed a mechanised spreading procedure. New systems in addition to techniques accept since been developed. Since reckoner technology has been used to make in addition to shop patterns too their markers, spreading processes accept become fully automated. Automated spreading systems take significantly increased the productivity of the spreading procedure but accept not altered its main function principles.
|Fig-four: Automated spreading procedure |
Automated spreading is performed using a especial spreading machine which unrolls a curl of material along the spreading table, cuts the ply, counts as well as ensures the right placement of each ply on the superlative of another to complete a spread. Spreading tin can live semi-automated or fully automated.
In a semi-automated spreading process, the operator moves along the spreading table in addition to follows the spreading procedure. The operator smoothes the surface of the position, recognises faults inwards the spread cloth too makes decisions to leave faults in the spread or cutting them out. Fully automated spreading is used for high lineament, easy spread materials. The operator sets all the necessary parameters (the length of the set, spreading speed, fabric tension etc.) as well as lets the motorcar complete each spread.
The spreading speed is dependent on the properties of a material. It is much faster (approx 1.5–3 times) than manual spreading. It is used in medium as well as large production enterprises, where the volume of production justifies the toll of the equipment together with its maintenance.
The automated spreading procedure may live performed inward semi-automated together with fully automated ways.
Semi-automated spreading procedure:
spreading table (walking or riding on a stand up panel) too follows the spreading. The operator smooths the surface of the position, identifies faults in the spread cloth too decides whether to leave faults inward the spread or to cut them out. The operator uses a manually operated speed control handle to alter the spreading speed in addition to to cut back the speed inward problematic areas, or fifty-fifty to end the spreading procedure if it is necessary to define the location of a mistake too to cut it out. Some machines accept iii control buttons instead of a speed control grip: forwards, contrary too cease. In these machines, the pinnacle of the cutting device is besides changed manually or by using a exceptional control push button.
Fully automated spreading procedure:
The fully automated spreading process is used for high character material which are easily spread. An operator sets the necessary parameters (the length of the put, the spreading speed, the fabric tension, etc.). The spreading automobile automatically performs the next operations: lays the cloth inwards the required length of the spread, cuts the material at the stop of every ply, counts the number of plies together with stops subsequently laying the required issue of plies.
Comparing manual and automated spreading processes:
The chief advantages of the automated spreading process are the capacity to cut significantly the run load of the spreading operator together with to increment productivity. Productivity depends upon several factors: the length of the spread as well as issue of plies inside it, the spreading speed (which is dependent on the textile properties), the spreading style, the length of the spreading tabular array, the material lineament, the time needed to cut the fabric ply in addition to to alter a cloth coil as well as the operate efficiency of the operator. Automated spreading machines position long spreads more than speedily as well as to a higher degree of quality than is possible by manual spreading. When textile is spread manually, it may live stretched through pulling (the same problem may appear using spreading machines without movable cloth bars instead of the cradle type of feed systems). Only 1 operator is employed inward performing the automated spreading process. Many of the run steps are carried out automatically (unwinding a fabric, textile ply cutting, alignment of fabric edges, length and ply counter, etc.).
Comparison of manual too automated spreading processes:
- Spreading tabular array
- Fabric feeder
- Cutting device
- Spreading table
- Spreading auto
- Spreading of pre-set number of plies
- Visual flaw identification by an operator
- Splicing manually using on the table marked splice marks in addition to printed markers
- Spreading of pre-set number of plies
- Visual flaw identification past an operator
- Splicing using registered data near flaw placements too especial software
- All variety of fabrics – manually
- High-quality tardily spread fabrics – fully automated manner
Advantages of the method
- Ability to spread all kind of materials
- Low expenses
- High productivity
- Only i operator needed
- Low function charge for an operator
Disadvantages of the method
- Low productivity
- Two operators needed
- High operate load for an operator
- High expenses
- Cannot spread material amongst intricate patterns
